Serverless Gardens

IoT + Serverless

twitter.com/@johncmckim

johncmckim.me

medium.com/@johncmckim

Software Engineer at A Cloud Guru

John McKim

@johncmckim

Contribute to Serverless Framework

https://acloud.guru

Serverless Framework

https://serverless.com

Agenda

  • What is Serverless
  • Why I built this project
  • Overall Architecture
  • Design of each Microservice
  • GraphQL + Lambda
  • What I learnt
  • Questions

What is Serverless?

Serverless

FaaS + The Herd

What is Serverless?

A Serverless Architecture is an event driven system that utilises FaaS  and other fully managed services for logic and persistence.

Why choose Serverless?

Benefits

  • Easier Operations Mangement
  • Reduced Operational Cost
  • Reduced Development Time / Cost
  • Highly Scalable
  • Loosely Coupled systems

Why build this?

For fun and learning

The Problem

Caring for my Garden

Serverless Garden

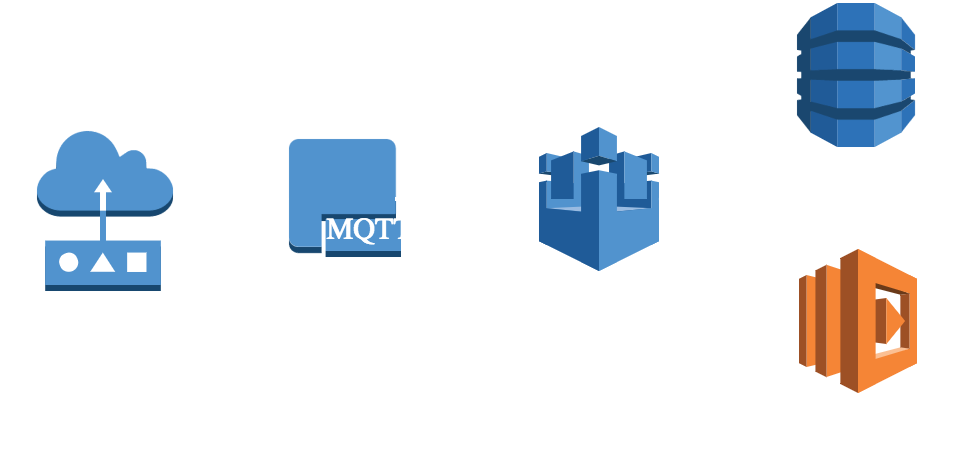

IoT Service

AWS IoT Service

How It works

Device Gatway

Protocols

  • MQTT  - devices
  • MQTT over Web Sockets  - browsers
  • HTTP  - last resort

Device Gatway

Authentication

  • X.509 Certificates - Mutual TLS
  • IAM - Signed Requests
  • Cognito - tokens

Device

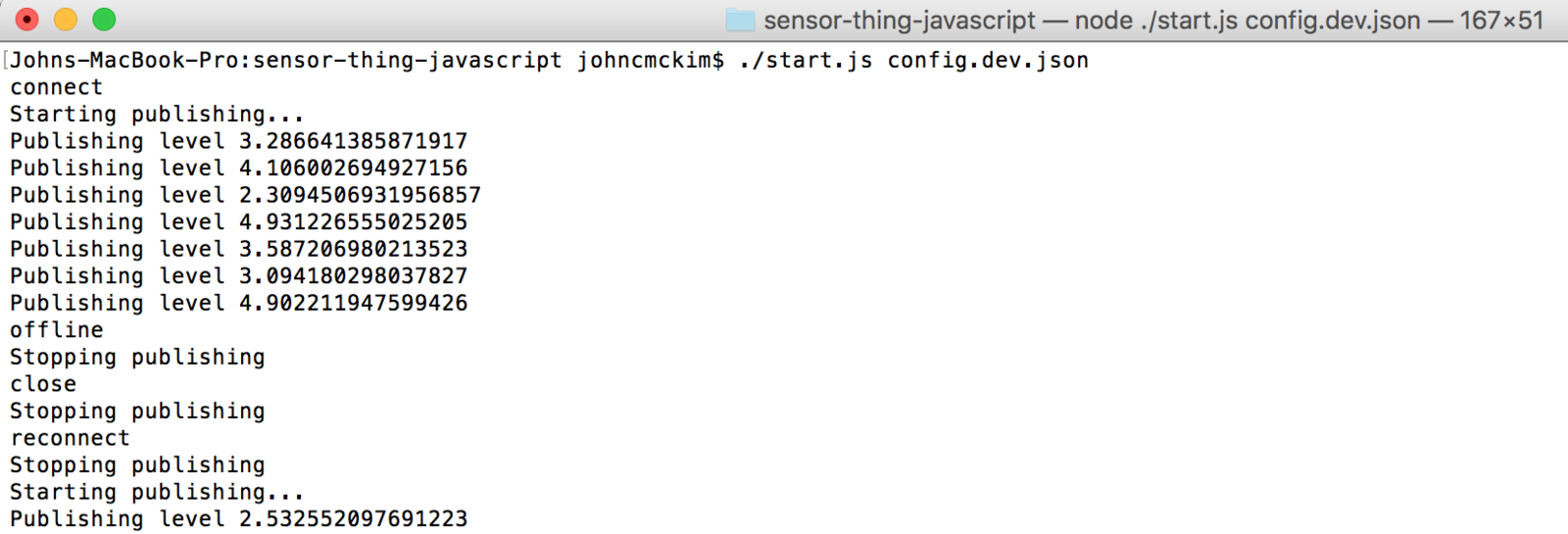

Fake Device

                            const awsIot = require('aws-iot-device-sdk');

const device = awsIot.device({
  'keyPath': './certificates/private.pem.key',
  'certPath': './certificates/certificate.pem.crt',
  'caPath': './certificates/verisign-ca.pem',
  'clientId': 'garden-aid-client-test-js',
  'region': 'ap-southeast-2'
});

device
  .on('connect', function() {
    const topic = 'garden/soil/moisture';
    const message = JSON.stringify({
      DeviceId: 'test-js-device',
      Recorded: (new Date()).toISOString(),
      Level: level
    });

    device.publish(topic, message, {});
  });

Demo

Fake Device

Rules Engine

Message Selection & Transformation

SQL Statement

  • FROM — MQTT topic
  • SELECT — transforms the data
  • WHERE (optional)

SELECT DeviceId, Recorded, Level FROM 'garden/soil/moisture'

Rules Engine

Actions

  • Lambda

  • DynamoDB

  • ElasticSearch

  • SNS

  • SQS

  • Kinesis

  • CloudWatch

  • Republish to another MQTT topic.

Rules Engine

IoT Rule in serverless.yml

                            SensorThingRule:
  Type: AWS::IoT::TopicRule
  Properties:
    TopicRulePayload:
      RuleDisabled: false
      Sql: "SELECT DeviceId, Recorded, Level FROM '$/garden/soil/moisture'"
      Actions:
        -
          DynamoDB:
            TableName: { Ref: MoistureData }
            HashKeyField: "ClientId"
            HashKeyValue: "${clientId()}"
            RangeKeyField: "Timestamp"
            RangeKeyValue: "${timestamp()}"
            PayloadField: "Data"
            RoleArn: { Fn::GetAtt: [ IotThingRole, Arn ] }
        -
          Lambda:
            FunctionArn: { Fn::GetAtt: [ checkMoistureLevel, Arn ] }

Notifications Service

  • Single purpose functions
  • High cohesion
  • Loose coupling

Messaging Options

Amazon Simple Queue Service (SQS)

Benefits

  • Dead letter queues
  • Reliable

Drawbacks

  • No integration with Lambda
  • Difficult to build scalable processor
  • Single processor / queue

Fully Managed message queuing service.

Messaging Options

Amazon Kinesis Streams

Benefits

  • Integrates with Lambda
  • Batched messages
  • Ordered messages

Drawbacks

  • Single lambda / shard
  • Scale per shard
  • Log jams
  • Messages expire

Capture and store streaming data.

Messaging Options

Amazon Simple Notification Service (SNS)

Benefits

  • Integrates with Lambda
  • Fan out multiple Lambdas

Drawbacks

  • Small message size
  • 3-5 retry's then drop message

Full managed messaging and Pub/Sub service

Notification Service

Check Level

                            const AWS = require('aws-sdk');
const sns = new AWS.SNS();

const publish = (msg, topicArn, cb) => {
  sns.publish({
    Message: JSON.stringify({
      message: msg
    }),
    TopicArn: topicArn
  }, cb);
};

module.exports.checkLevel = (event, context, cb) => {
  if(event.Level < 2.5) {
    const msg = 'Moisture level has dropped to ' + event.Level;

    const topicArn = process.env.mositureNotifyTopic;

    publish(msg, topicArn, cb);
    cb(null, { message: msg, event: event });
    return;
  }

  cb(null, { message: 'No message to publish', event: event });
}

Notifications Service

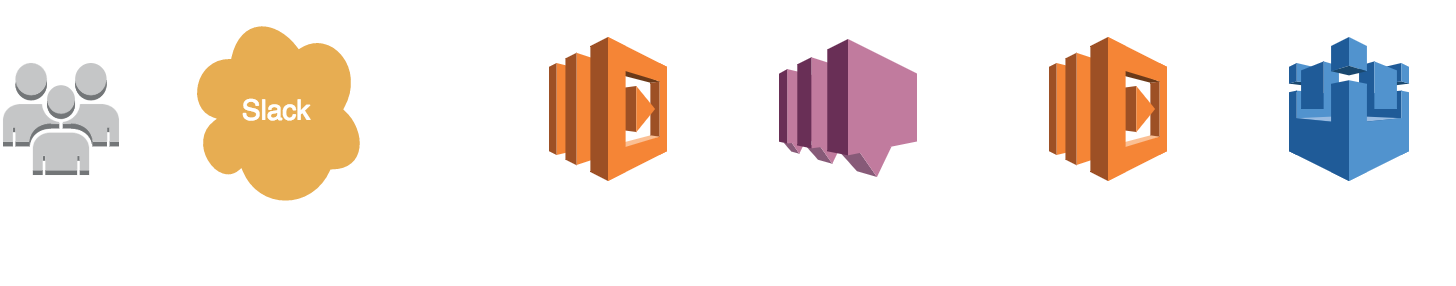

Slack Notifier

                            const BbPromise = require('bluebird');
const rp = require('request-promise');
const util = require('util');

const notify = (msg) => {
  return rp({
    method: 'POST',
    uri: process.env.slackWebHookUrl,
    json: true,
    body: {
      text: msg,
    },
  });
}

module.exports.notify = (event, context, cb) =>  {
  console.log(util.inspect(event, false, 5));

  const promises = [];

  event.Records.forEach(function(record) {
    if(record.EventSource !== 'aws:sns') {
      console.warn('Recieved non sns event: ', record);
      return;
    }

    const notification = JSON.parse(record.Sns.Message);
    promises.push(notify(notification.message));
  });

  return BbPromise.all(promises)
          .then(() => cb(null, { message: 'success' }))
          .catch(cb);
};

Demo

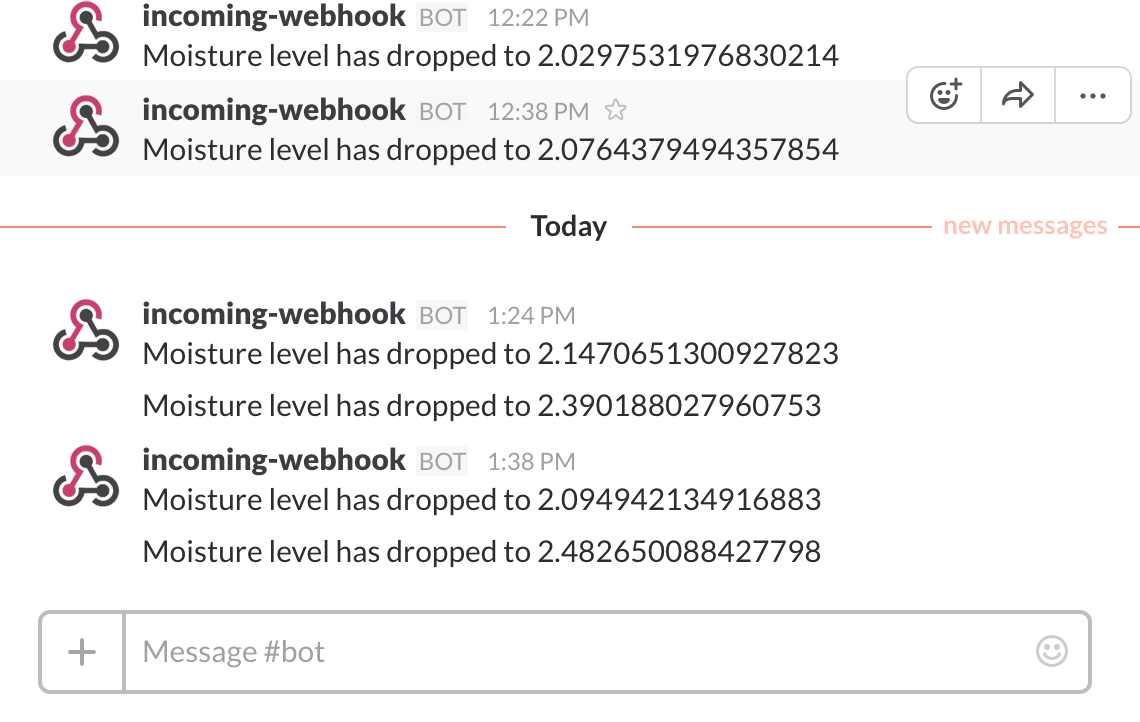

Slack Notifications

Web Services

Web Client

  • React SPA
  • Firebase Hosting
  • Auth0 for authentication

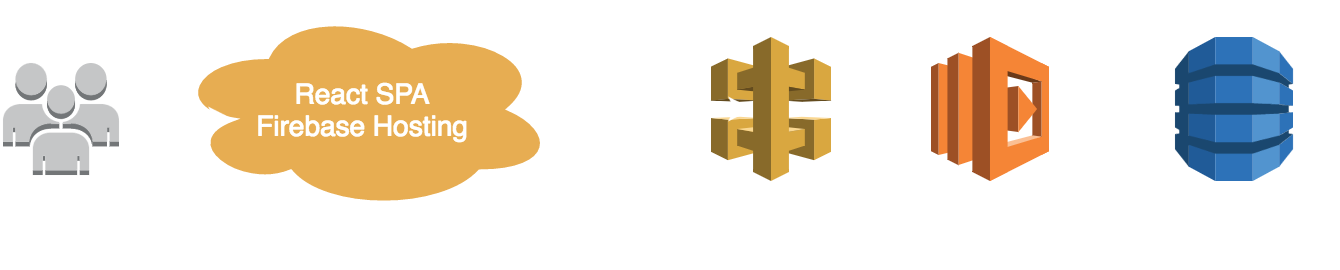

Web Backend

  • GraphQL API
  • API Gateway + Lambda
  • Data in DynamoDB
  • Custom authoriser

Web Services

API Gateway

What is it?

  • HTTP Endpoint as a Service
  • Integrates with Lambda
  • Convert HTTP Request to Event
  • Can delegate Authorization

Web Services

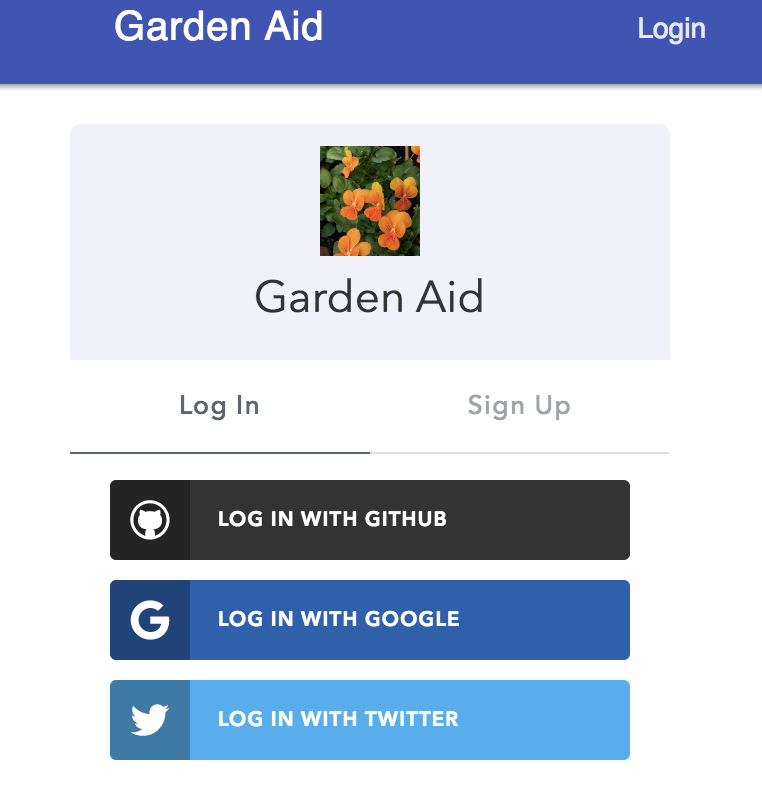

Auth0 Authentication

Web Services

Authentication with GraphQL

                            const networkInterface = createNetworkInterface(GRAPHQL_URL);

networkInterface.use([{

  applyMiddleware(req, next) {
    if (!req.options.headers) {
      req.options.headers = {}; // Create the header object if needed.
    }

    // get the authentication token from local storage if it exists
    const idToken = localStorage.getItem('idToken') || null;
    if (idToken) {
      req.options.headers.Authorization = `Bearer ${idToken}`;
    }
    next();
  },
}]);

Web Services

Custom Authorizer

                            const utils = require('./auth/utils');
const auth0 = require('./auth/auth0');
const AuthenticationClient = require('auth0').AuthenticationClient;

const authClient = new AuthenticationClient({
  domain: process.env.AUTH0_DOMAIN,
  clientId: process.env.AUTH0_CLIENT_ID,
});

module.exports.handler = (event, context, cb) => {
  console.log('Received event', event);

  const token = utils.getToken(event.authorizationToken);

  if (!token) {
    return cb('Missing token from event');
  }

  const authInfo = utils.getAuthInfo(event.methodArn);

  return authClient.tokens.getInfo(token)
    .then((userInfo) => {
      if (!userInfo || !userInfo.user_id) {
        throw new Error('No user_id returned from Auth0');
      }

      console.log(`Building policy for ${userInfo.user_id} with: `, authInfo);

      const policy = new AuthPolicy(userInfo.user_id, authInfo.accountId, authInfo);

      policy.allowMethod(AuthPolicy.HttpVerb.POST, '/graphql');

      const result = policy.build();
      console.log('Returning auth result: ', result, result.policyDocument.Statement);

      return result;
    })
    .catch((err) => {
      console.log(err);
      return 'Unauthorized';
    });
};

Demo

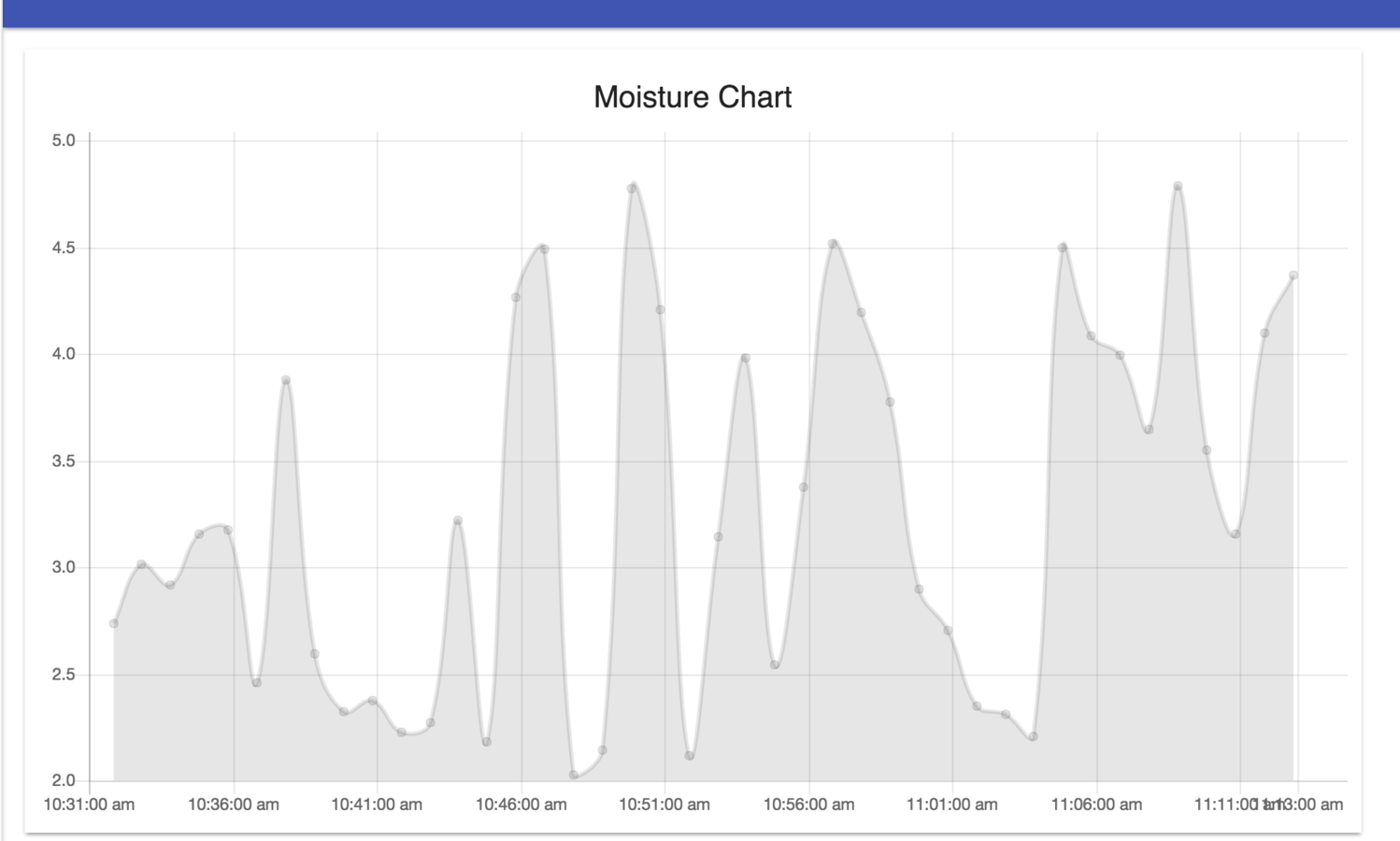

Dashboard

What is GraphQL?

type Project {
  name: String
  stars: Int
  contributors: [User]
}
{
  project(name: "GraphQL") {
    stars
  }
}
{
  "project": {
    "stars": 4462
  }
}

Schema

Results

Query

Why GraphQL?

  • One endpoint (per service) to access your data
  • The client chooses the response format
  • No versioning *
                            import gql from 'graphql-tag';
import { connect } from 'react-apollo';
import MoistureChart from '../../pres/Moisture/Chart';

export default connect({
  mapQueriesToProps({ ownProps, state }) {
    return {
      moisture: {
        query: gql`{
          moisture(hours: ${ownProps.hours}, clientId: "${ownProps.clientId}") {
            date, moisture
          }
        }`,
        variables: {},
        pollInterval: 1000 * 30, // 30 seconds
      },
    };
  },
})(MoistureChart);

GraphQL Query

GraphQL Schema

                            const graphql = require('graphql');
const tablesFactory = require('./dynamodb/tables');
const MoistureService    = require('./services/moisture');

const tables = tablesFactory();
const moistureService = MoistureService({ moistureTable: tables.Moisture });

const MoistureType = new graphql.GraphQLObjectType({
  name: 'MoistureType',
  fields: {
    date: { type: graphql.GraphQLString },
    moisture: { type: graphql.GraphQLFloat },
  }
});

const schema = new graphql.GraphQLSchema({
  query: new graphql.GraphQLObjectType({
    name: 'Root',
    description: 'Root of the Schema',
    fields: {
      moisture:
        name: 'MoistureQuery',
        description: 'Retrieve moisture levels',
        type: new graphql.GraphQLList(MoistureType),
        args: {
          clientId: {
            type: graphql.GraphQLString,
          },
          hours: {
            type: graphql.GraphQLInt,
            defaultValue: 1
          },
        },
        resolve: (source, args, root, ast) => {
          const hours = args.hours > 0 ? args.hours : 1;
          return moistureService.getLastHours(args.clientId, hours);
        }
      }
    }
  })
});

module.exports = schema;

AWS Lambda

                            const graphql = require('graphql');

const schema = require('./schema');

module.exports.handler = function(event, context, cb) {
  console.log('Received event', event);

  const query = event.body.query;

  return graphql.query(schema, event.body.query)
    .then((response) => {
      cb(null, response)
    })
    .catch((error) => {
      cb(error)
    });
}

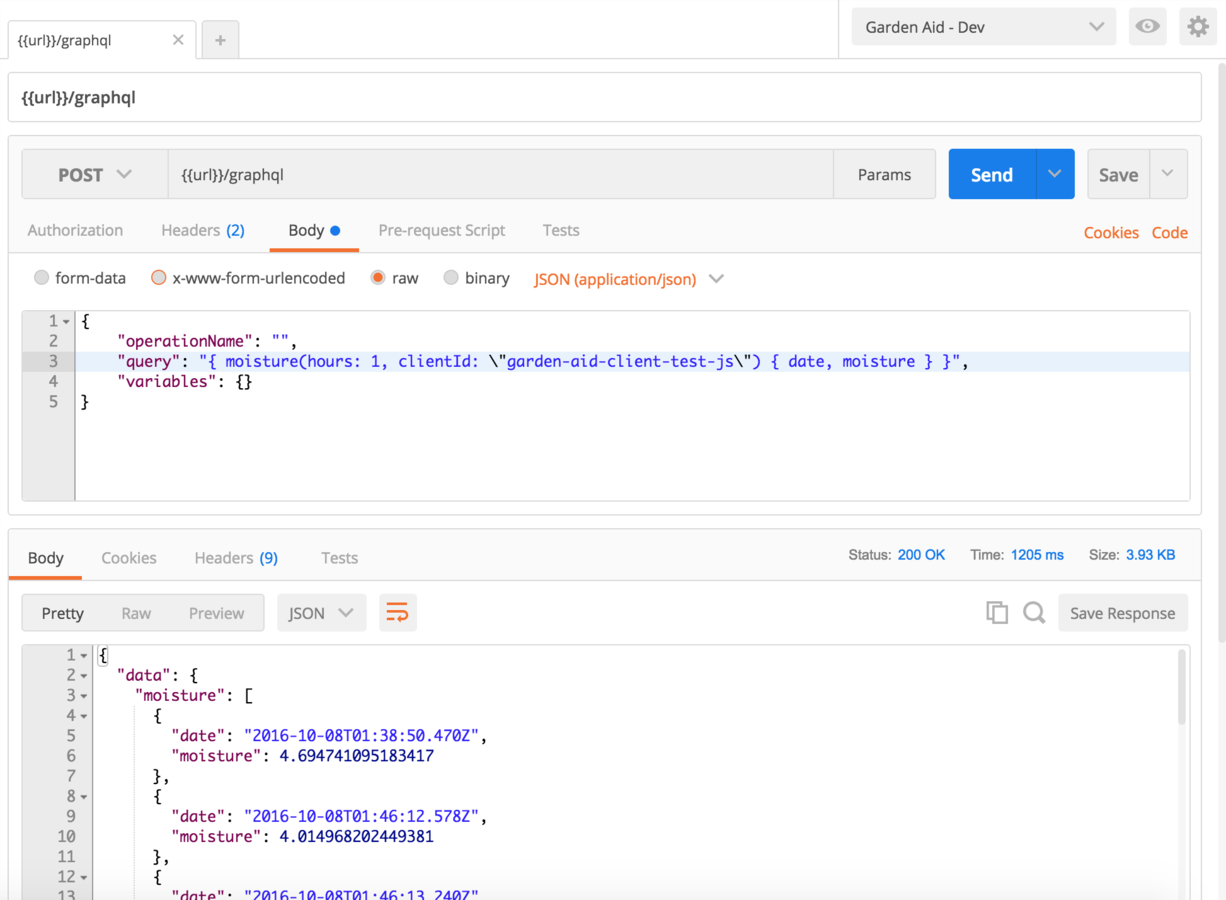

Demo

GraphQL Query

GraphQL on AWS Lambda

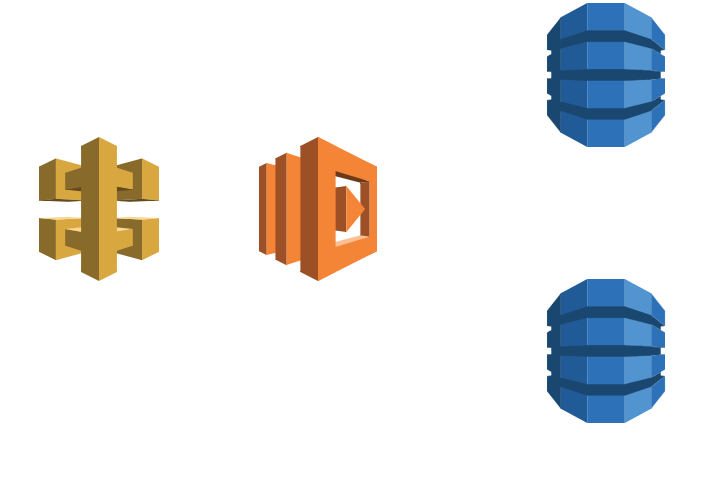

Single Lambda Design

GraphQL on AWS Lambda

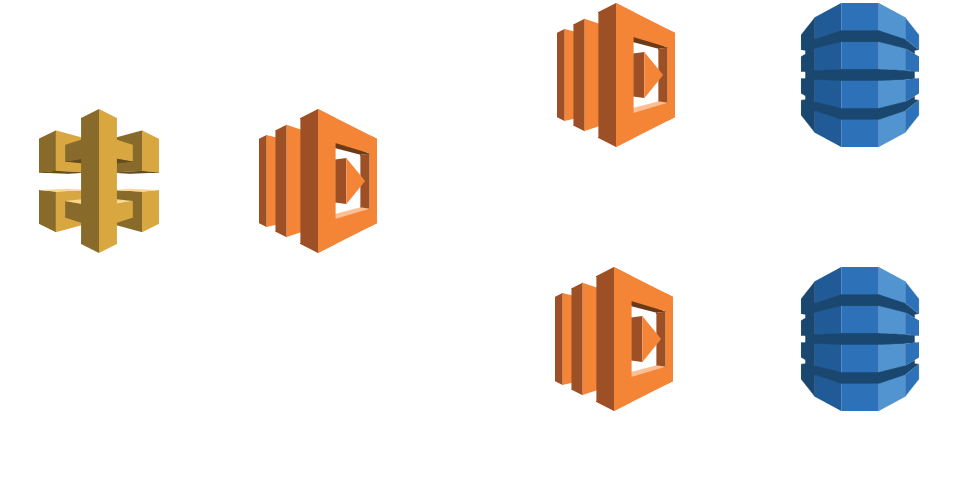

Lambda Tree Design

Summary

Serverless + IoT

My Experiences

  • No server operations
  • Cost - $0
  • Use *aaS services
  • Focus on developing functionality
  • Iterate quickly & scale

Alternative Options

IoT Service

Device Shadows

  • Stores Device State
  • Get current state
  • Track state

Alternative Options

Notifications Service

  • Monolithic Notification Lambda
  • Other notification services
    • Facebook Messenger
    • Sms - Twillio, Nexmo

Alternative Options

Web Services

  • Front-end Framework
    • Angular
    • Vue
  • Elastic Search instead of DynamoDB
  • Web Service own Data Store

What did I learn?

  • Know your services well
  • Know what services exist
  • Selecting Boundaries is hard
  • Automation is always worth it
  • GraphQL is awesome

Many things

Resources

Code + Reading

  • github.com/garden-aid
  • serverless.zone

Frameworks & Tools

  • serverless.com
  • AWS
  • Firebase
  • Auth0

Thanks for Listening!

Questions?
